Q.Fly™ Camera
The Q.Fly™ is the first-ever DJI-ready Quantum Dot Short Wave Infrared (SWIR) camera designed specifically for UAVs. Developed by Quantum Solutions and TOPODRONE, the Q.Fly™ offers plug-and-play compatibility with DJI Matrice 300 and Matrice 350 RTK, providing real-time video streaming, control, and configuration directly from the DJI remote controller.
It features a 16 MP RGB sensor and a Quantum Dot SWIR VGA sensor from Quantum Solutions, with an optional VGA Long Wave Infrared (LWIR) channel. Weighing only 650g, the lightweight design allows for flight times of up to 35 minutes on a single battery set.
With additional filters for "multispectral-like imaging," the Q.Fly™ simplifies airborne imaging for industries such as agriculture, fire safety, security, and industrial inspections.
Q.Fly™ camera highlights:
- Visible SWIR: 400 – 1700 nm
- Built-in SWIR sensor 640 x 512 pix, 400 - 1700 nm
- Built-in 16 Mp RGB camera for visual positioning
- Built-in thermal imager 640 x 512, 30 Hz

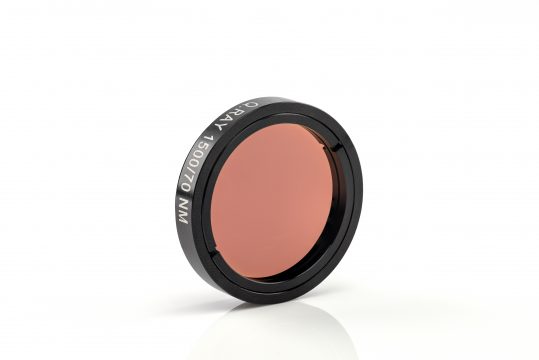

- Ability to quickly install any spectral value filters
- Spectral imaging at 220 Hz
- High-precision spectral images geo-referencing
- 3-axis gyrostabilized suspension
- Built-in Linux computer for camera control with support for various protocols, in particular DJI PSDK and Mavlink
- Integration with DJI Matrice 350 RTK: control, configuration and video transmission from the camera
- The camera with gimbal weighs only 650g, which allows you to fly up to 35 minutes on 1 battery set.
Click here to download the Technical Specification for detailed information.
Learn more how the camera works in vision through harsh weather conditions (fog, smoke, rain, haze) and obstructions
Q.Fly™ is a trademark of QUANTUM SOLUTIONS. Contact us to make any requests and questions or buy products.
